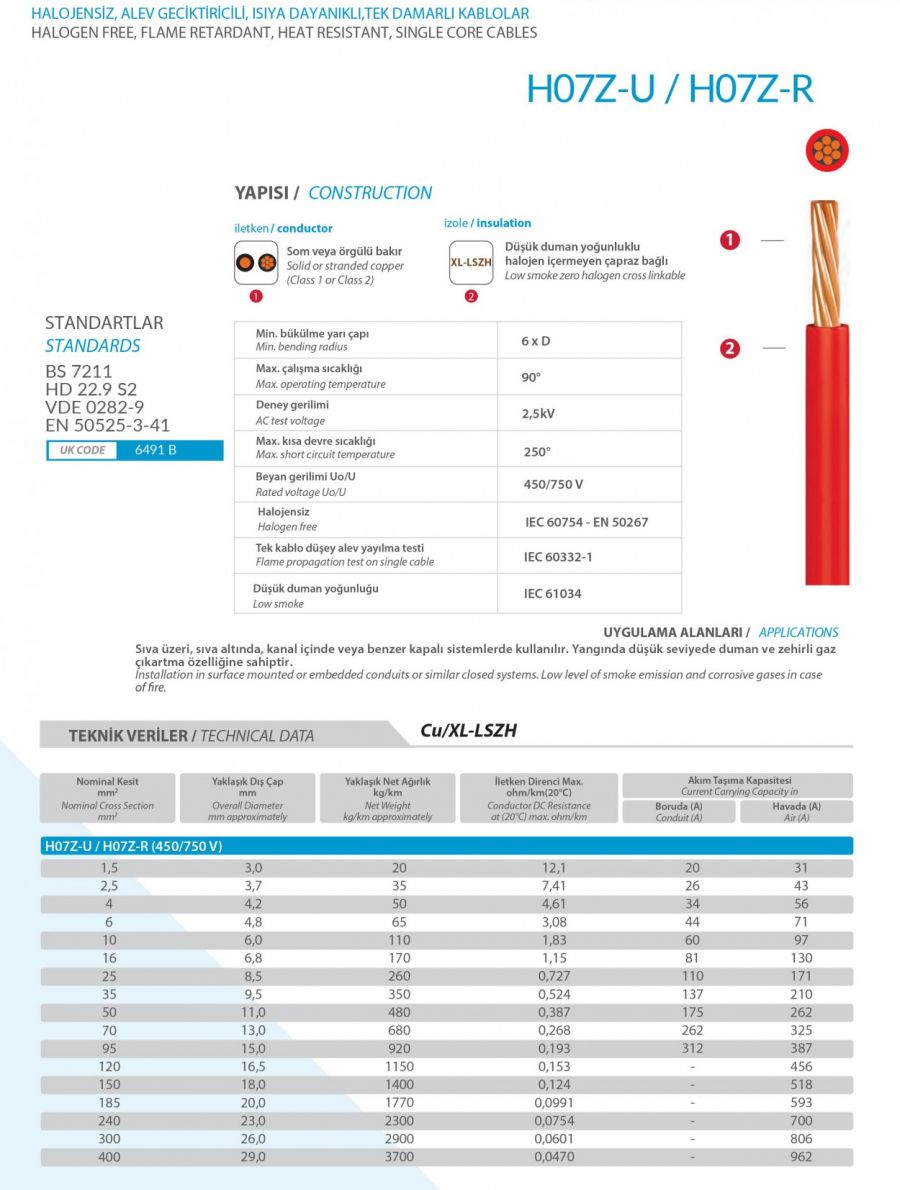

CU: IEC 60228 CLASS 1 & 2

U: Solid Conductor

R: Stranded Conductor

Standarts

TS EN 50525-3-41 -BS 7211


Technical Data

Max operating temperature: 90 0C

Short circuit temperature: 250 0C ( max. 5 sn. )

Rated Voltage : 450 / 750 V


Application

Used in places where human population is high and there is a risk of fire. They do not conduct flame during fire and do not create h,gh smoke density.


Construction:

1- Solid or stranded copper conductor

2- XL HFFR insulation
